GENERAL
|

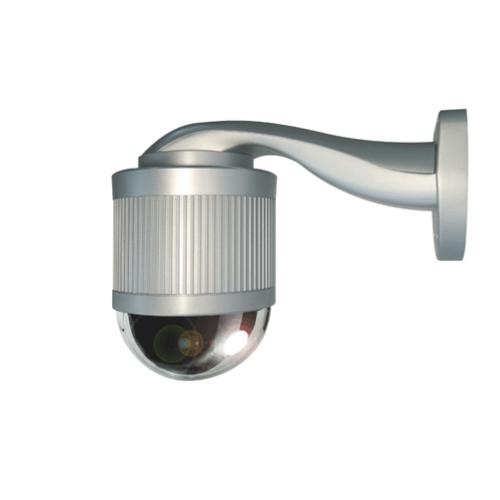

AVP322ZBP
|
|
Signal System
|
NTSC or PAL
|
|
Pick-up Element
|
1/4" Sony Color Super HAD CCD image sensor
|
|
Number of Pixels
|
768(H)*494(V) / 752(H)*582(V)
|
|
Resolution
|
High Resolution
|
|
Min. Illumination
|
0.6 Lux / F1.6
|
|
S/N Ratio
|
More than 48dB (AGC off)
|
|
Video Output
|
1.0 Vp-p. 75Ω
|
|
BLC
|
On / Off
|
|
Gain Control
|
Low, Medium & High / Off
|
|
Sharpness
|
Auto / Low / Medium / High
|
|
White Balance
|
Auto / Indoor 1 / Indoor 2 / Sun / Cloudy * Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K
|
|
Camera Title
|
10 characters or symbols
|
|
|
Total 8 groups, 256 programmable preset points
|
|
Preset Points and Sequence
|
* The sequence of all the preset points will follow the order of the minimal panning route.
|
|
Auto Tracking
|
Yes
|
|
LENS
|
|
Focal Length
|
f3.9 mm ~ f85.9 mm
|
|
F-number
|
F1.6 (Wide) ~ 3.7 (Tele)
|
|
Viewing Angle
|
4∘~ 60∘
|
|
Auto Electronic Shutter
|
1 / 60 (1/50) to 1 / 100,000 sec.
|
|
Auto Focus
|
Always / PTZ / Z Only / P Only
|
|
MECHANISM
|
|
Pan Range
|
360∘
|
|
Pan Speed
|
360∘/ 1 sec * The pan speed can be adjusted according to the different pan speed mode.
|
|
Tilt Range
|
90∘
|
|
Tilt Speed
|
0∘~ 90∘under 1 sec
|
|
Zoom Ratio
|
22X optical zoom
|
|
Zoom Speed
|
Approx. 7s (Tele ~ Wide)
|
|
OTHERS
|
|
IP Rating
|
IP66
|
|
Ambient Operating Temperature
|
-20∘~ 40∘(-4°F ~ 104°F)
|
|
Storage Temperature
|
0∘~ 70∘
|
|
Power Source (±10%)
|
DC12V
|
|
Current Consumption
|
1.5 A (max)
|
|
Dimension (mm)**
|
145(Ø) x 184(H) (Bracket not included)
|
|
Gross Weight (g)
|
Approx. 1.2 kg
|
|
Optional Bracket
|
Wall-mounted
|
|
Optional Device
|
Keyboard controller
|
